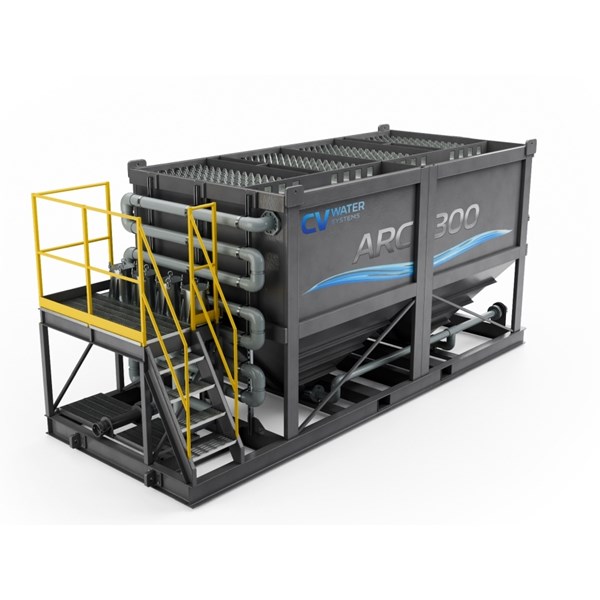

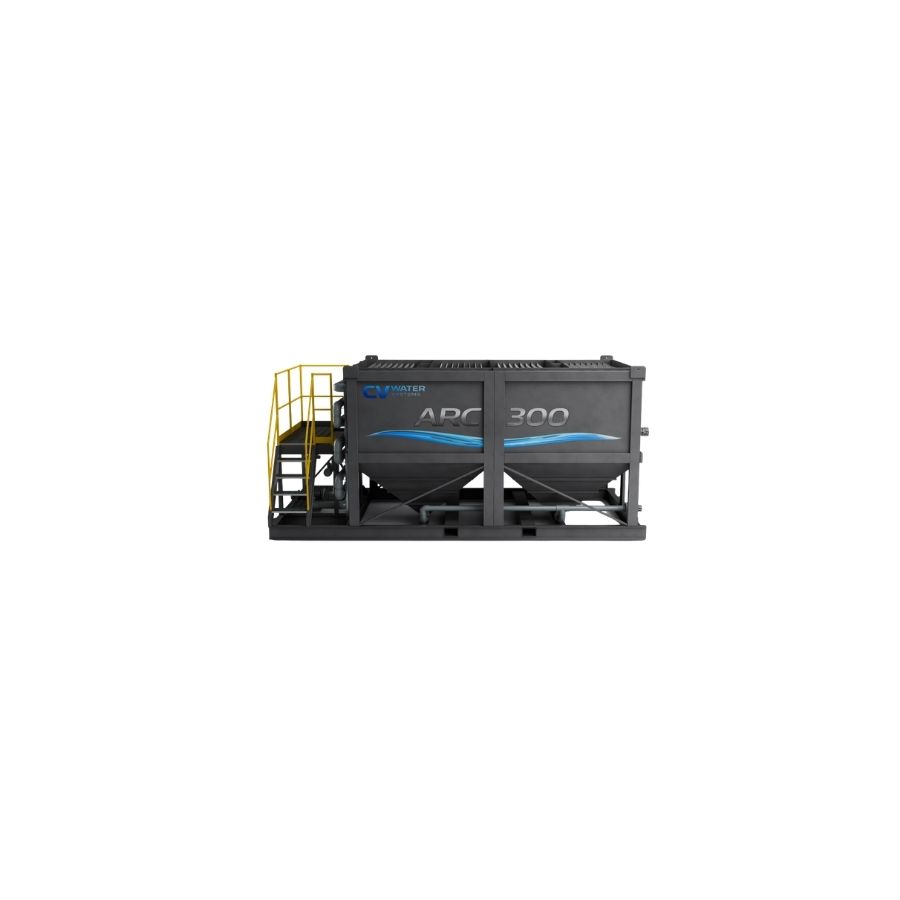

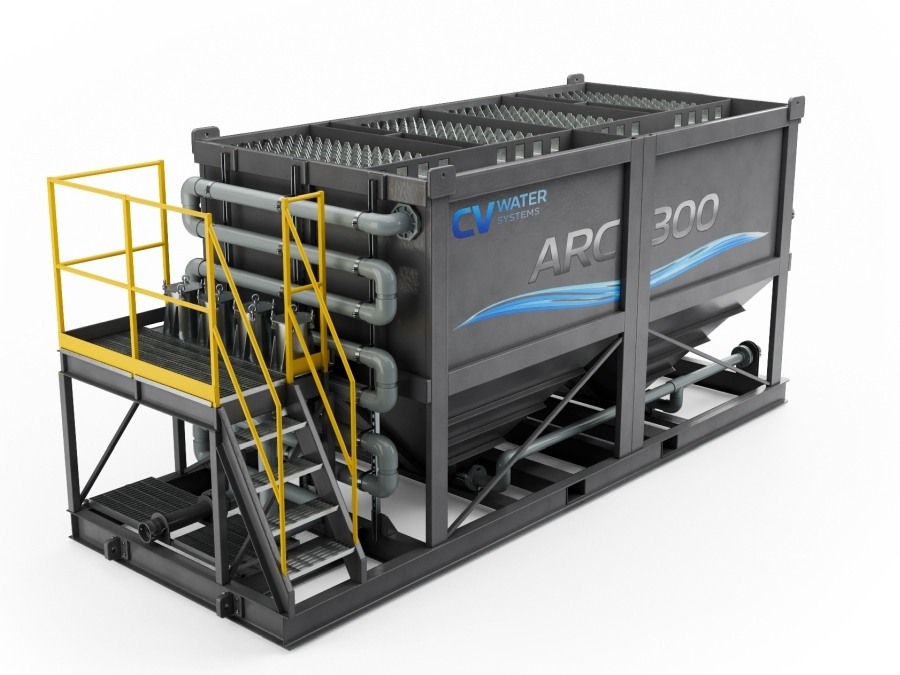

ARC 300 Clarifier

Designed for compact and mobile water-treatment applications, the ARC300 combines adaptive Gel Flocculant chemistry, engineered reactors and high-rate lamella clarification in one integrated system. It provides a nominal treatment capacity of 300 GPM and can accommodate flow rates from approximately 150 to 450 GPM, depending on influent conditions and treatment objectives.

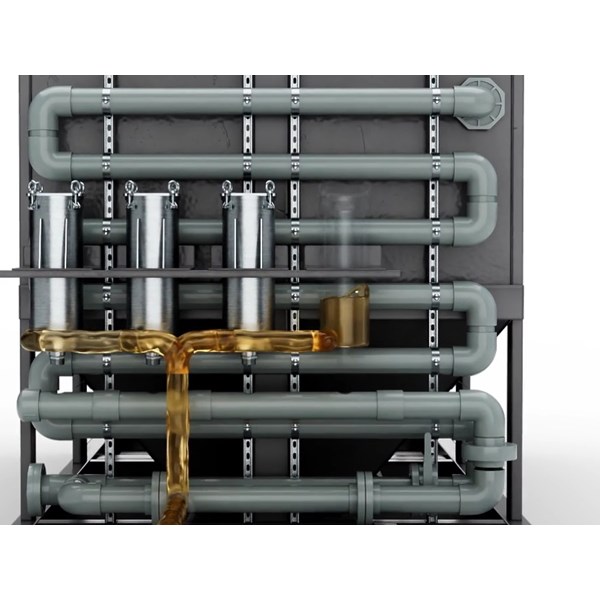

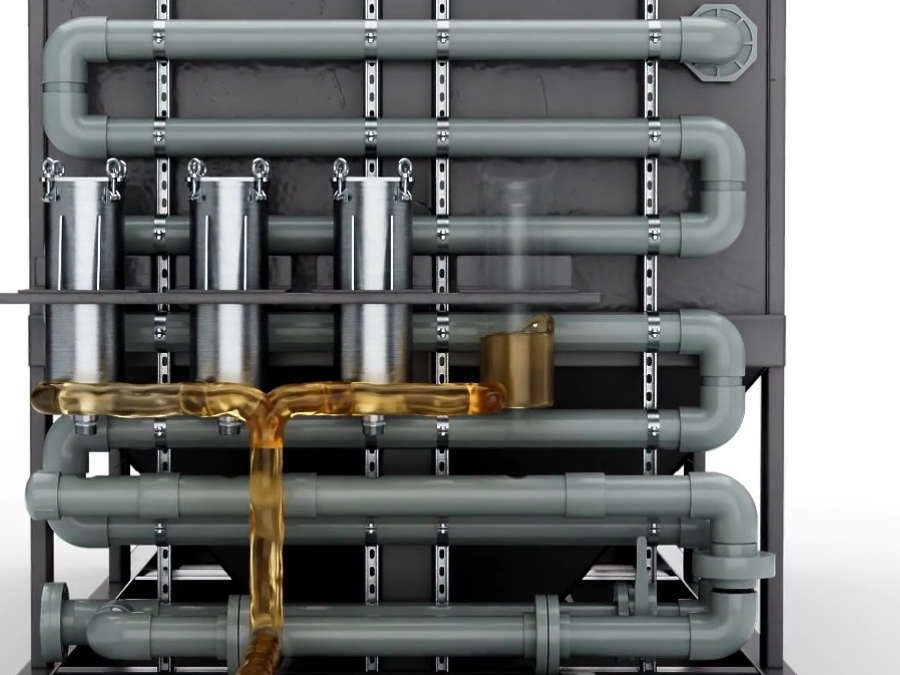

Four stainless steel, dual-cartridge reactors promote controlled interaction between the water and Gel Flocculant. A downstream static mixer and engineered retention zone support floc development before the water enters the 4,500-gallon lamella clarifier, where inclined settling plates provide rapid solids separation within a compact footprint.

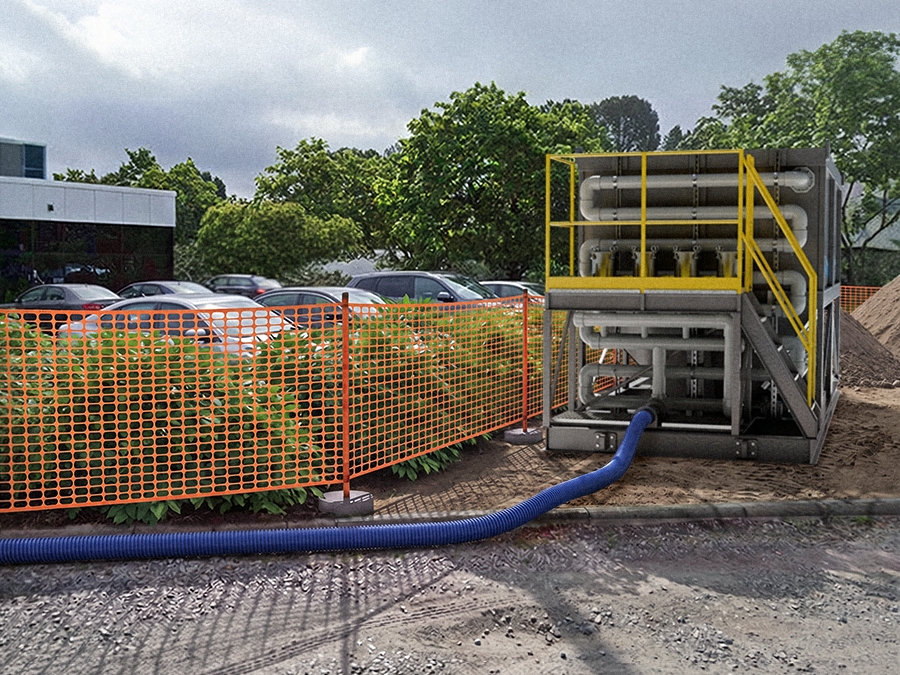

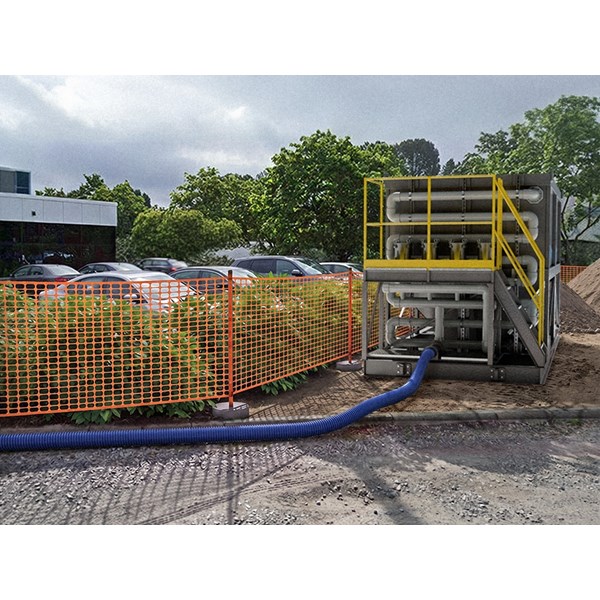

The complete system is mounted on an 8-by-20-foot structural steel skid equipped with fork pockets, tow hooks and certified lifting points for flexible transportation and placement. With no chemical metering pumps, minimal operator intervention and no process power requirement beyond pumping, the ARC150 delivers a simple and reliable solution for construction dewatering, municipal stormwater, site runoff and smaller industrial process-water applications.
