ARC 600 Clarifier

Designed for demanding, high-flow water-treatment applications, the ARC600 combines adaptive Gel Flocculant chemistry, engineered reactors and high-rate lamella clarification in one integrated system. It provides a nominal treatment capacity of 600 GPM and can accommodate flow rates from approximately 300 to 900 GPM, depending on influent conditions and treatment objectives.

Four stainless steel reactors, each holding three Gel Flocculant cartridges, provide the treatment capacity and water-to-gel contact required for larger process flows. A downstream static mixer and engineered retention zone support effective particle collision and controlled floc growth before the water enters the 9,000-gallon lamella clarifier for rapid, high-rate solids separation.

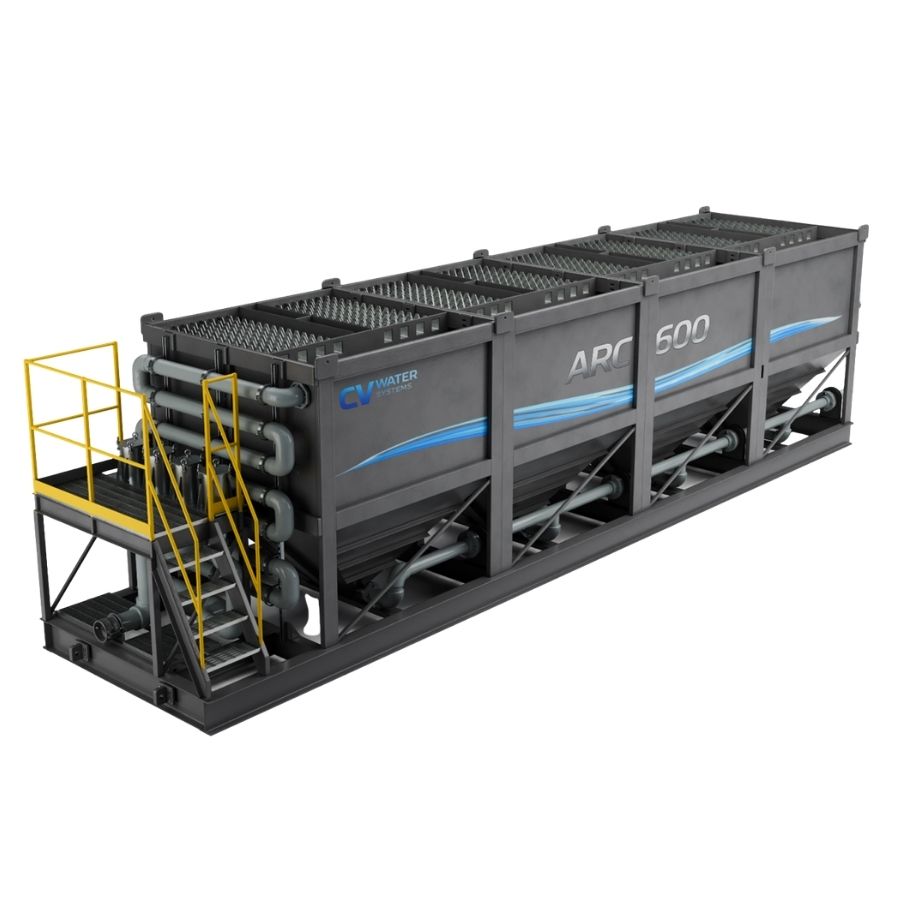

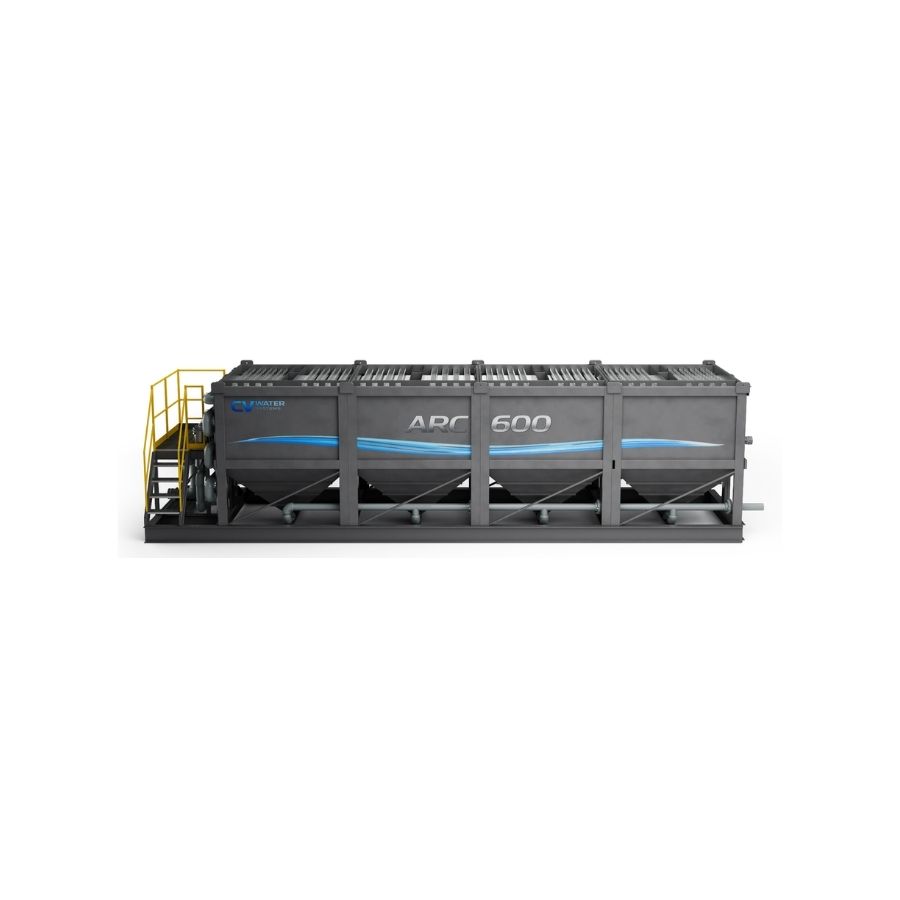

The complete system is mounted on an 8-by-35-foot heavy-duty structural steel skid equipped with fork pockets, tow hooks and certified lifting points. With minimal operator intervention, no chemical metering and no process power requirement beyond pumping, the ARC600 provides a reliable treatment solution for mining, mineral processing, aggregate plants, major construction projects and industrial site runoff.
